[Deck Design Series] How to Design Pier Footings
[Deck Design Series] How to Design Pier Footings
See how to design a Deck Pier Footing using ClearCalcs’ Pier Footing calculator.
Download this example as a PDF: Deck Pier Footing [USA Pier Footing]
This design example is part 4 of 4 in our “Deck Design Series.” For more information on how to use ClearCalcs to design a deck, click here.
Please be aware that this example should not be used as advice, recommendations, or instructions for engineering design and should only be followed as a guide to using ClearCalcs.

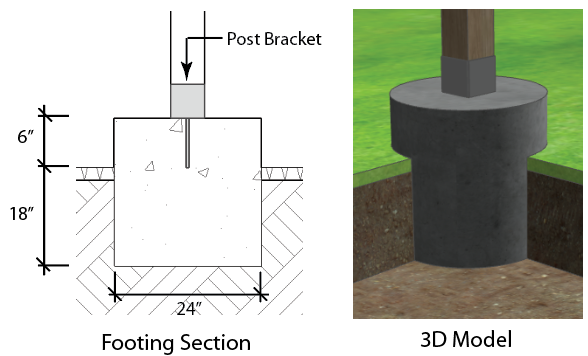

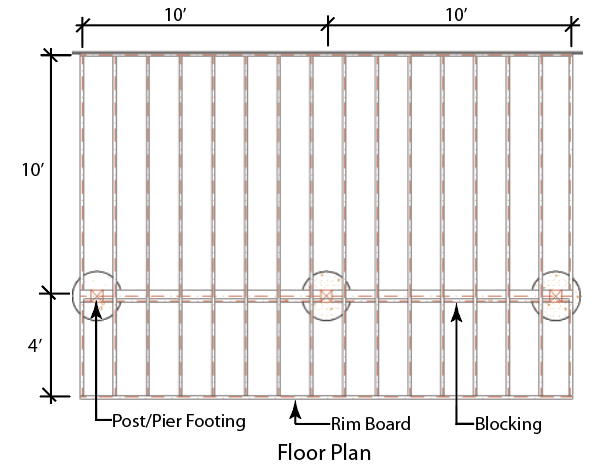

Diagram

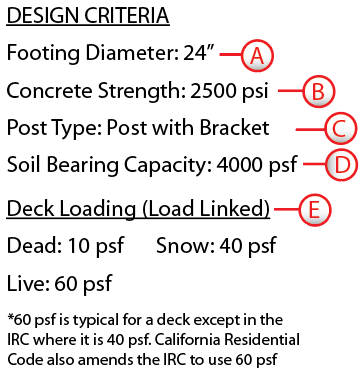

Design Information

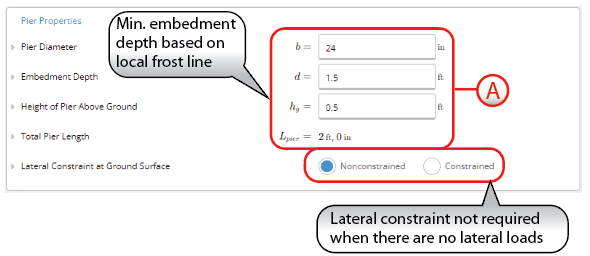

Pier Properties

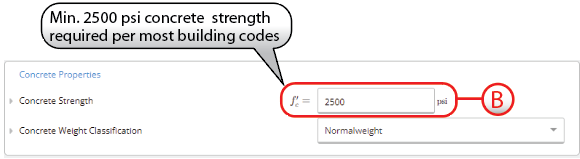

Concrete Properties

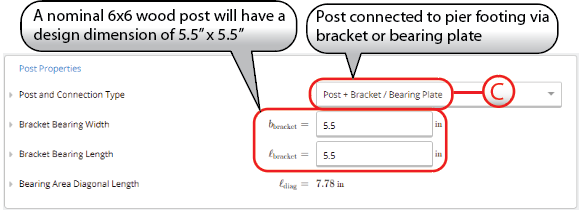

Post Properties

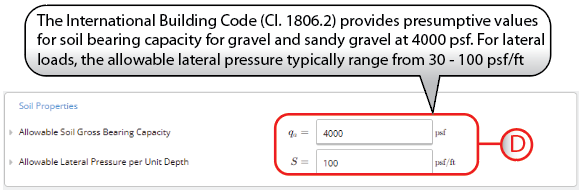

Soil Properties

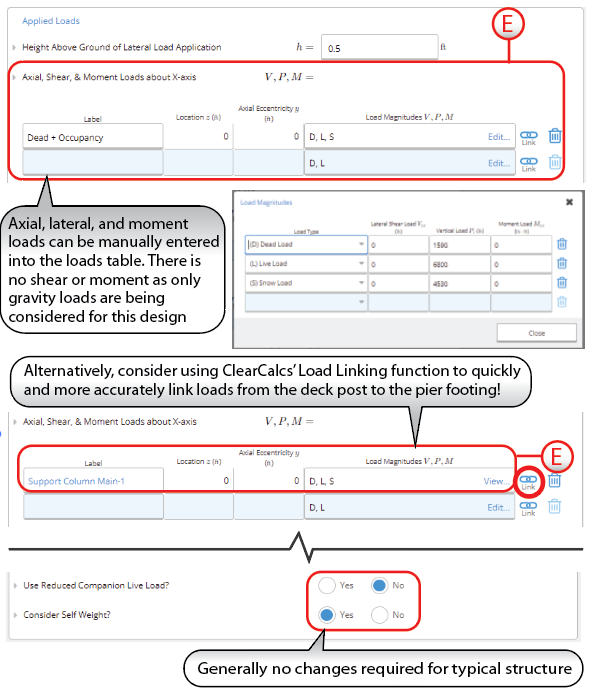

Loads
